ICEView/ICEEdit

กก

CAD Science, Inc.

www.cadscience.com

Snap Shots

กก

• Normal display

• Layer display with hierarchy tree panel

• Cell Instance Highlights

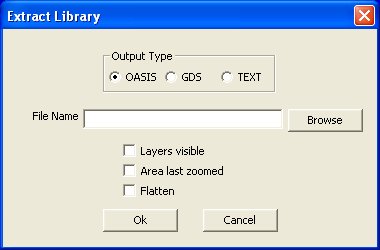

• Hierachical/Flat/Area extraction to GDS/OASIS/Text

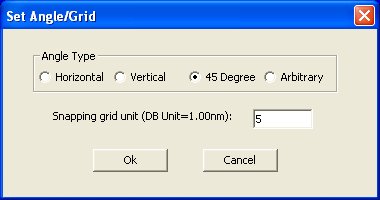

• Angle/Grid snapping for ruler and editing

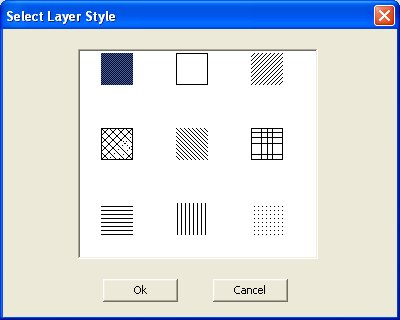

• Layer display style (pattern) - colors are assigned from color controller, transparent to others

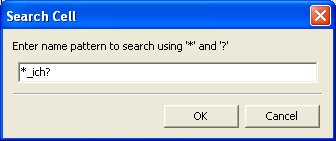

• Search/Open cell using regular expression

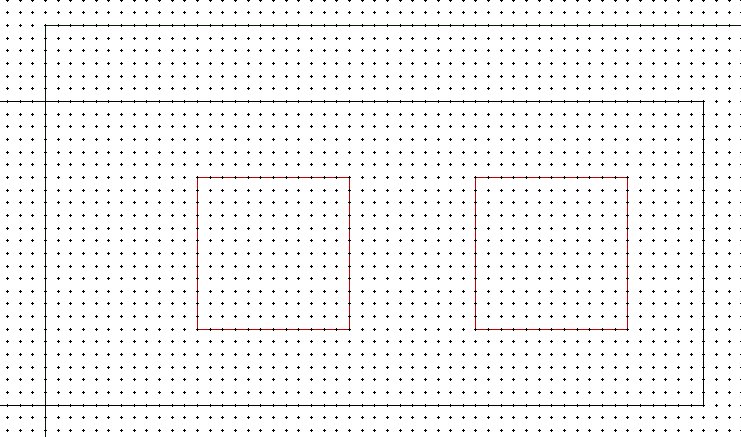

• Automatic grid display

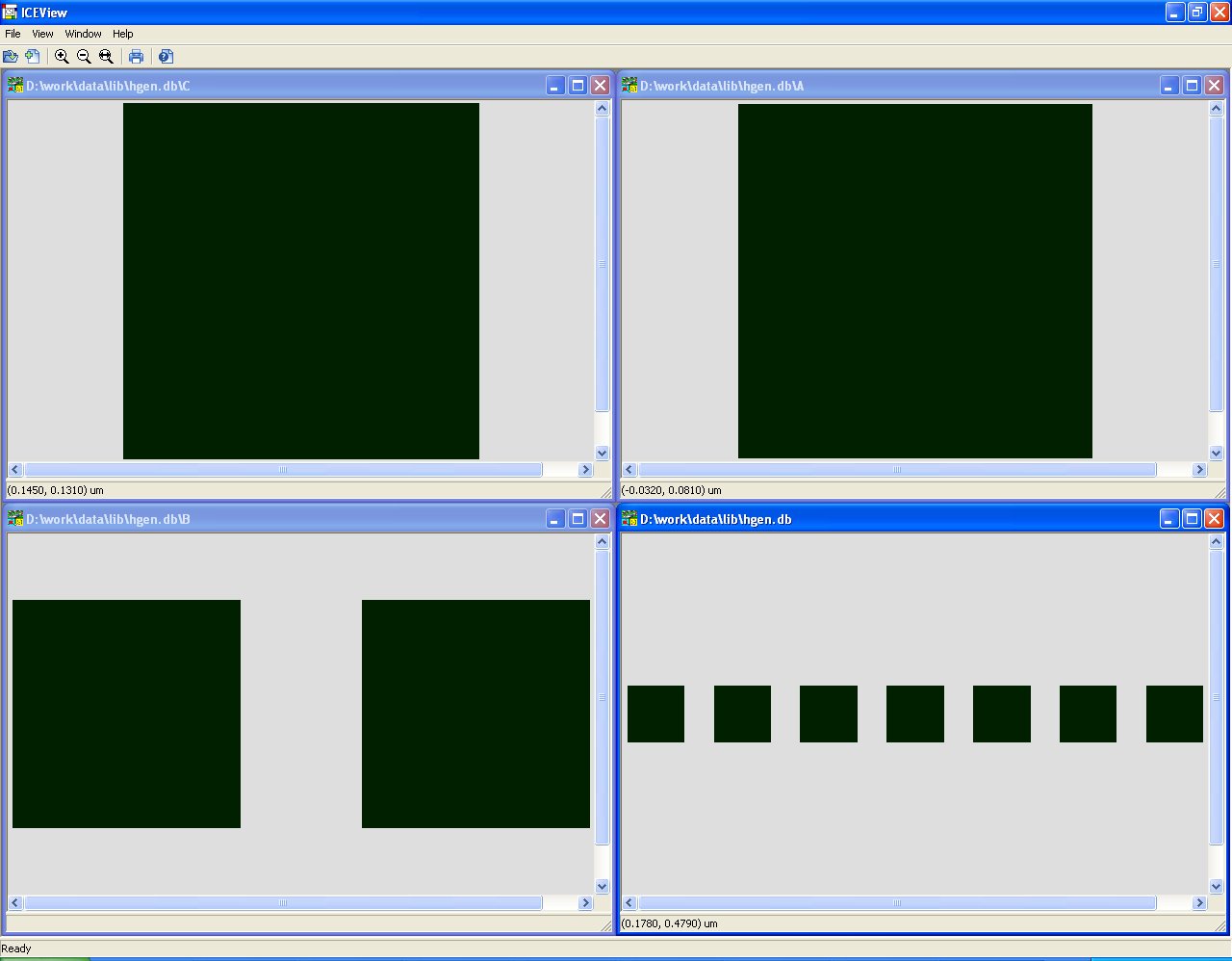

• Multi-Window display (Windows only)

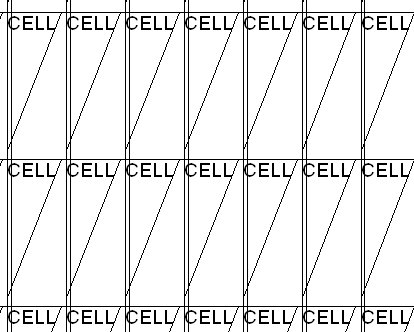

• Cell display

• In-Place geometry identification through hierarchy

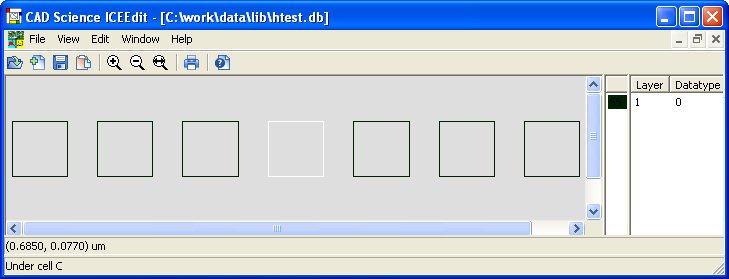

• In-Place hierarchy identification of selected geometry

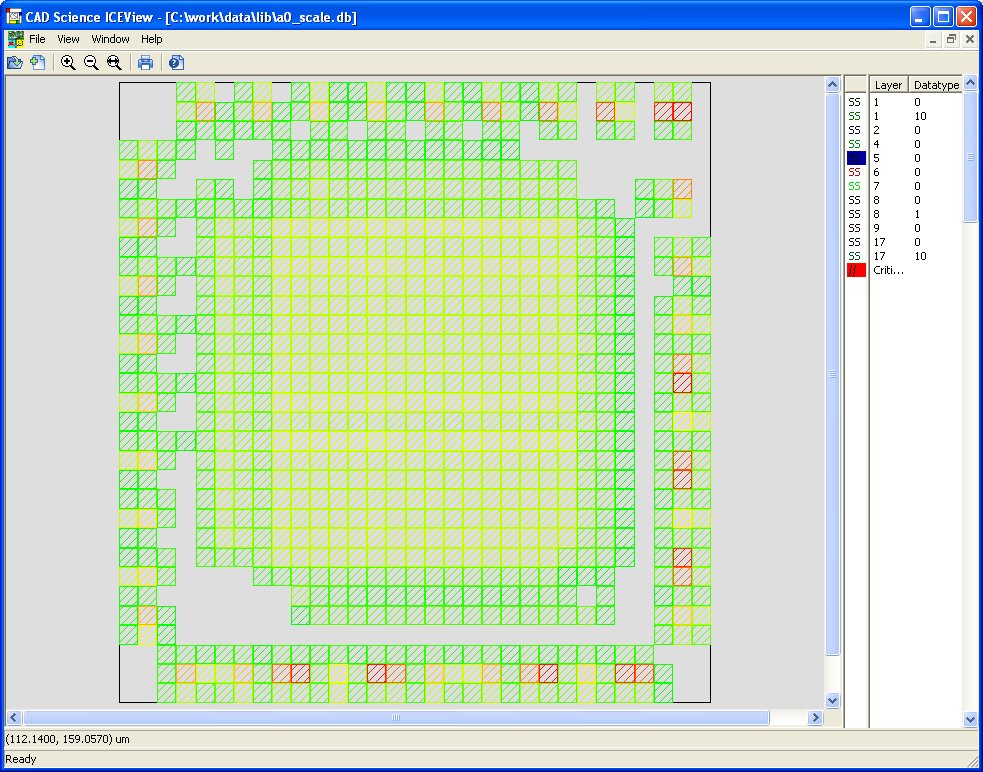

• Hot spot display

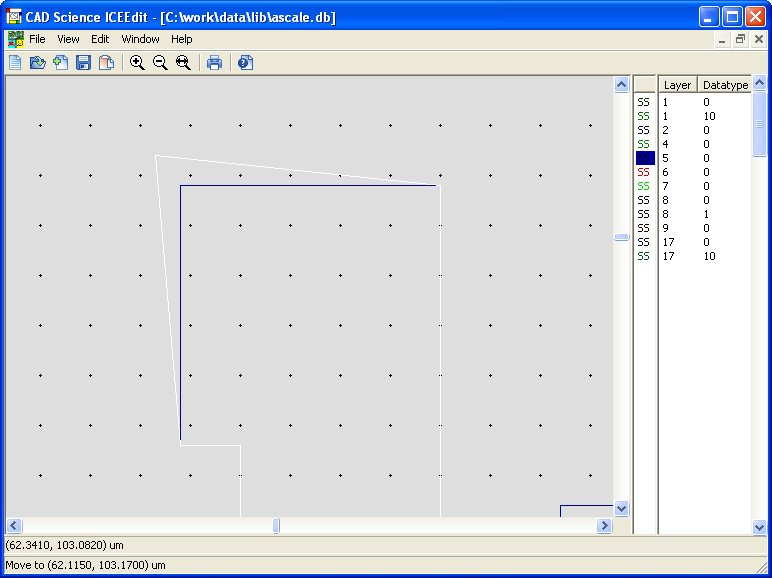

• Point move of selected geometry

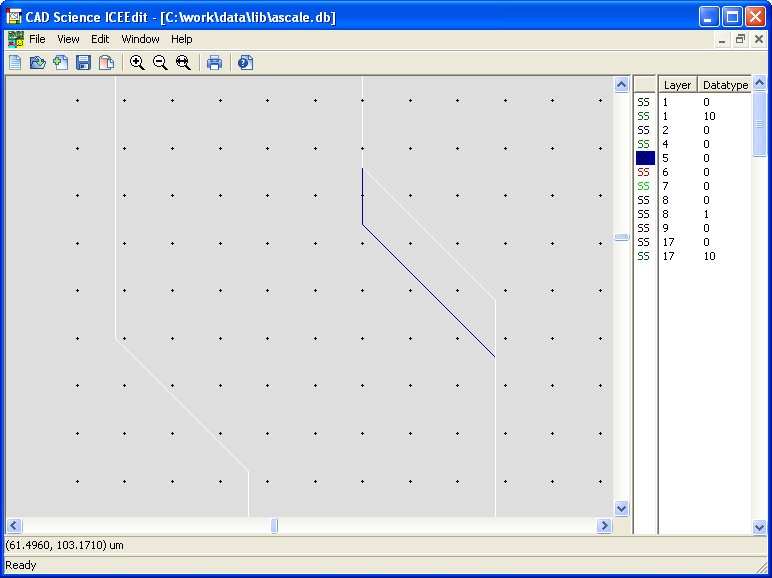

• Edge move of selected geometry

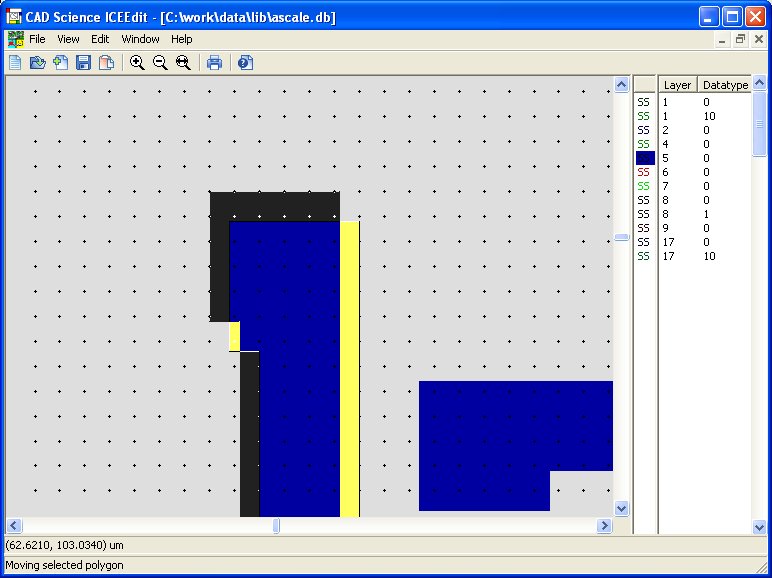

• Move selected geometry
